Building Modern Coding Agents like Claude Code & Cursor — Ultimate Playbook (2025–2026)

Audience: Tech Leads, Senior Engineers, CTO-minded builders
Goal: A production-grade blueprint for building coding agents (CLI-native like Claude Code, IDE-native like Cursor) with architecture, training, evals, observability, and failure models.

0) What changed (the real reasons agents got good)

Modern coding agents improved because builders shifted to:

• Master-loop agents (simple loop + tools) instead of brittle orchestration DAGs.
• Verification-first workflows (tests/linters/runtime checks as ground truth).
• Context as the bottleneck: systems are designed around preventing context pollution and retrieving the right code slices fast.

1) Reference architecture (what to build)

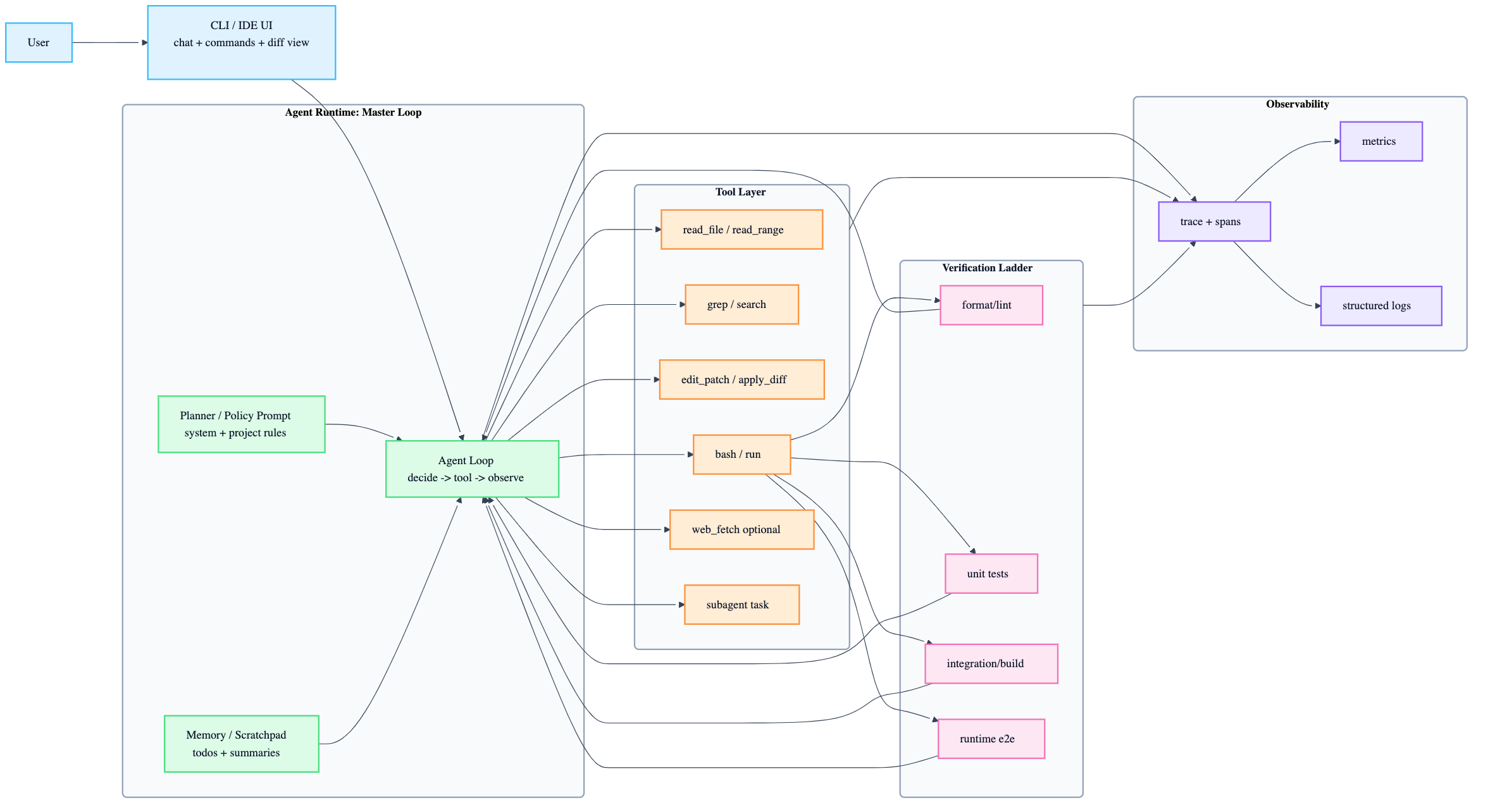

1.1 High-level system architecture

1.2 The “Master Loop” runtime (the core engine)

This is the minimal control flow that wins in practice:

1. Model decides next action
2. Tool executes
3. Tool output becomes observation
4. Verify & iterate until done

Canonical master-loop pseudocode

def agent_run(task, tools, verifier, budget):
    state = {
        "todo": [],
        "summary": "",
        "attempts": 0,
        "artifacts": [],
    }

    trace = start_trace(task_type=task.type)

    while state["attempts"] < budget.max_steps:
        state["attempts"] += 1

        # 1) Build context with anti-pollution safeguards
        ctx = build_context(task, state, max_tokens=budget.ctx_tokens)

        # 2) Decide next action
        with trace.span("llm_decide"):
            action = llm_decide(ctx)  # -> {tool,args} OR {final} OR {ask_user}

        if action.type == "final":
            end_trace(trace, status="success")
            return action.output

        if action.type == "ask_user":
            end_trace(trace, status="needs_human")
            return action.question

        # 3) Tool execution (with schema validation)
        tool = tools[action.tool]
        with trace.span("tool_call", tool=action.tool):
            obs = tool.exec(action.args)

        # 4) Update state (and compress noisy outputs)
        state = update_state(state, obs)
        state["summary"] = compress_if_needed(state["summary"], obs, budget)

        # 5) Verification-triggered loop (key for coding agents)
        if should_verify(obs, state):
            with trace.span("verify"):
                v = verifier.run()

            state = update_state(state, v)
            if v.passed and is_task_done(task, state):
                end_trace(trace, status="success")
                return make_final_report(task, state)

    end_trace(trace, status="budget_exhausted")
    return make_partial_report(task, state)

2) UX modalities: CLI-native vs IDE-native

2.1 CLI-native (Claude Code-style)

Best for repo-wide refactors, migrations, debugging, “outer loop” automation.

Core UX primitives

• slash commands (/review, /fix, /test)
• clear permission prompts (especially for writes + run)
• artifact diffs + change summaries

2.2 IDE-native (Cursor-style)

Best for low-latency editing, autocomplete, inline diffs, IDE-aware navigation.

Core UX primitives

• inline completions
• editor-native context extraction
• always-on index freshness

3) Tools: build “human-like” tools first

3.1 Minimum viable toolset

• read_range(path, start, end)
• grep(query, include_globs, exclude_globs)
• edit_patch(diff) (atomic apply, clear failure modes)
• run(cmd) (sandboxed)
• subagent(task) (context isolation)
• optional: web_fetch(url) (usually isolated / gated)

3.2 Tool interface contract (typed + safe)

from dataclasses import dataclass
from typing import Any, Dict, Literal

ToolName = Literal["read_range", "grep", "edit_patch", "run", "subagent"]

@dataclass
class ToolResult:
    ok: bool
    exit_code: int
    stdout: str
    stderr: str
    meta: Dict[str, Any]  # latency_ms, file_paths, bytes_read, etc.

class Tool:
    name: ToolName
    def validate(self, args: Dict[str, Any]) -> None: ...
    def exec(self, args: Dict[str, Any]) -> ToolResult: ...

class EditPatch(Tool):
    name: ToolName = "edit_patch"

    def validate(self, args):
        assert "diff" in args and isinstance(args["diff"], str)

    def exec(self, args):
        # apply diff atomically; return ok/exit_code
        ...

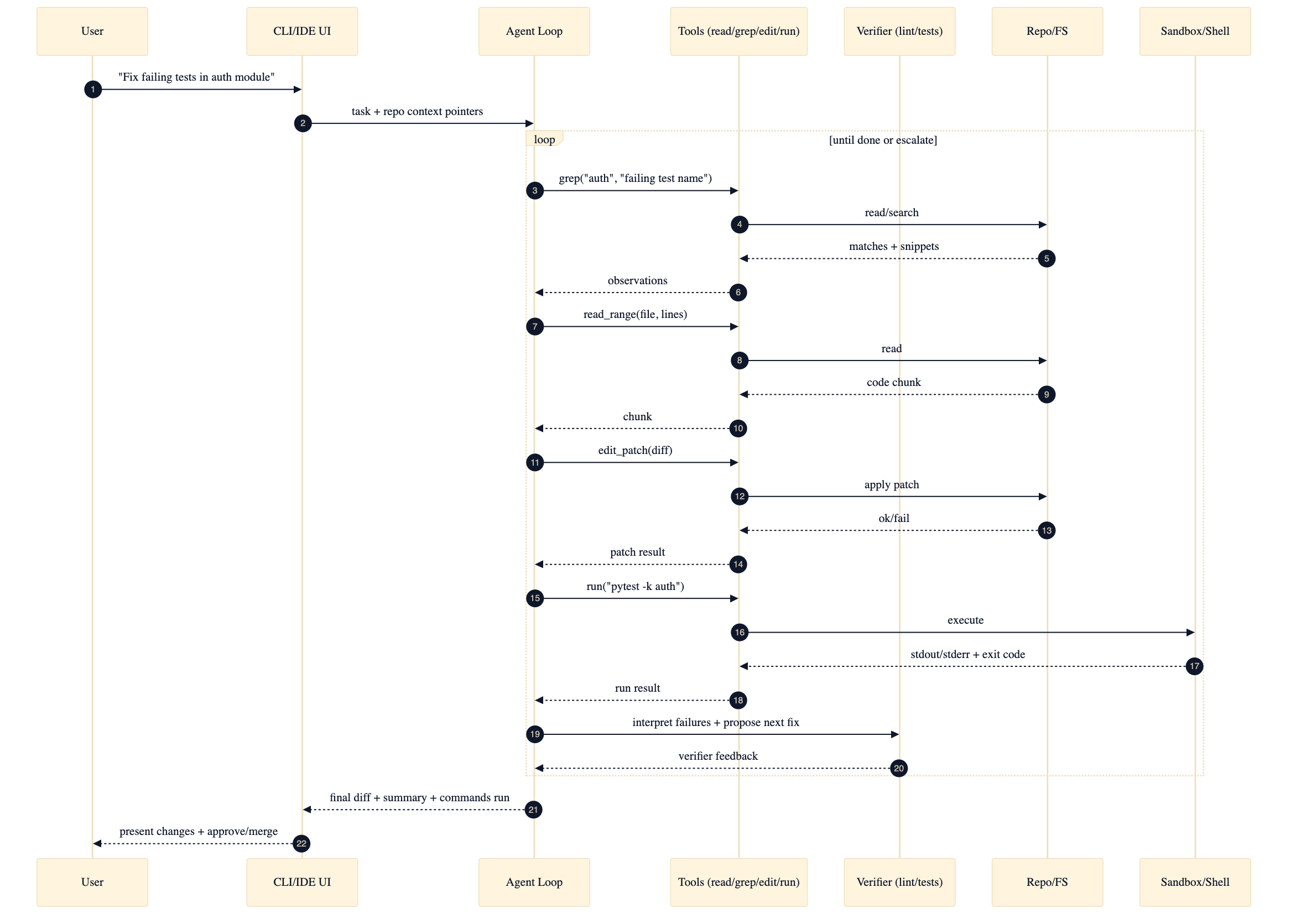

4) The agent loop in action (end-to-end sequence)

5) Context management (the actual hard part)

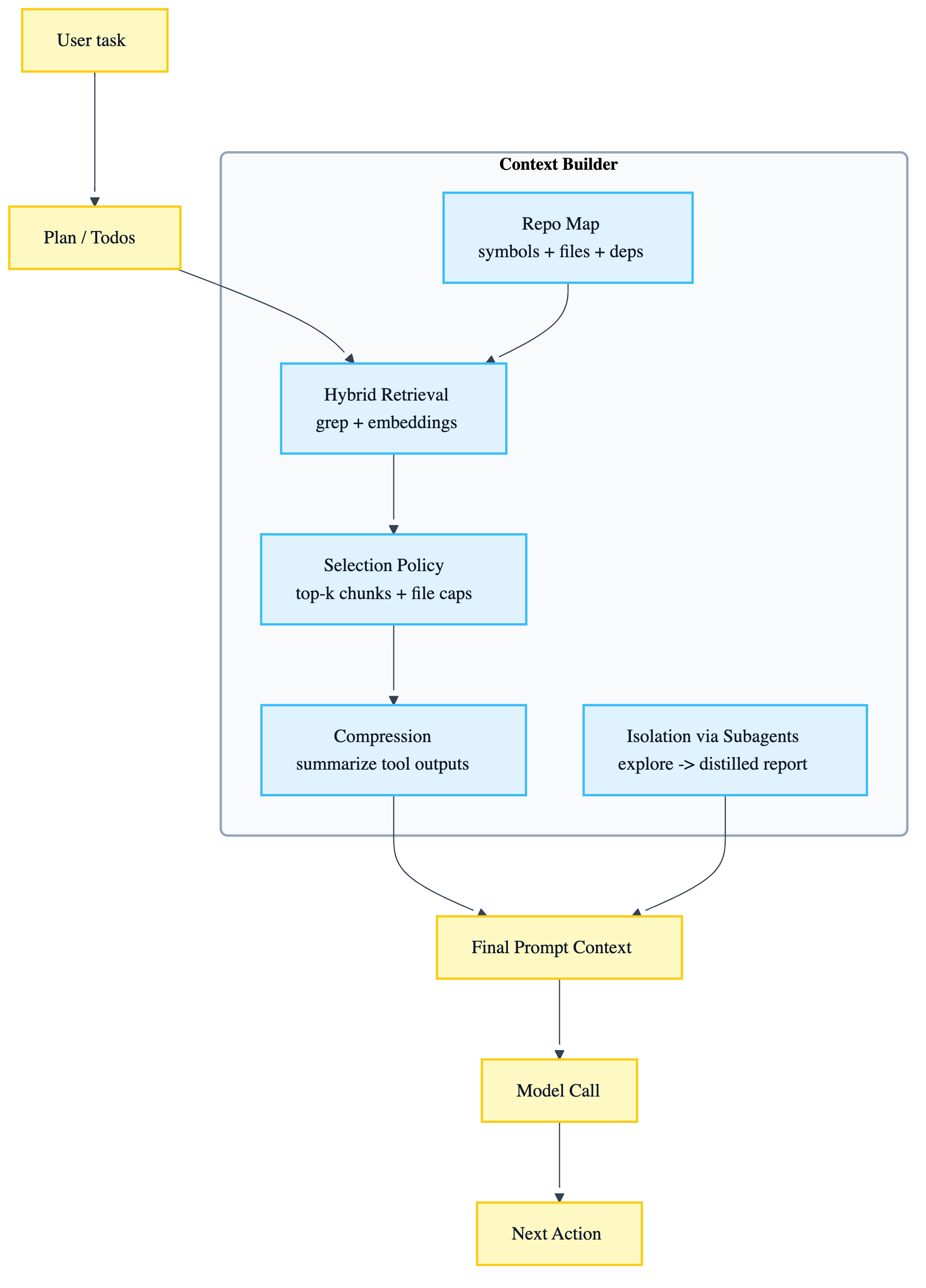

5.1 Context builder with anti-pollution patterns

5.2 Practical context rules (ship these defaults)

• Cap per-file context (prevents single file domination)
• Prefer many small slices over one giant paste
• Summarize tool outputs aggressively (especially stderr)
• Use subagents for exploration; return distilled findings

6) Cursor-style indexing & sync (freshness is everything)

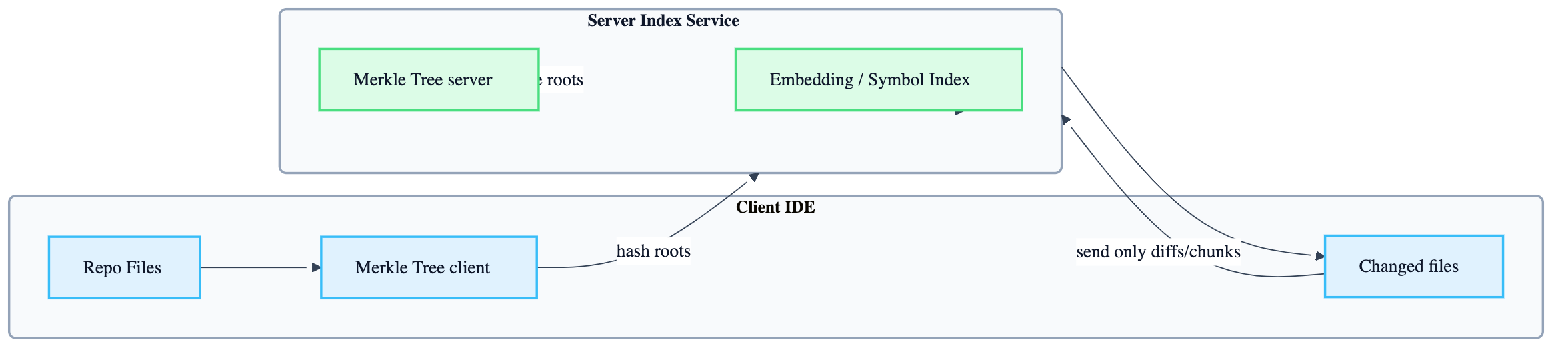

6.1 Merkle-based incremental sync

Why it matters: stale indexes = wrong retrieval = confident wrong edits.

7) Verification ladder (how agents become reliable)

7.1 The ladder

1. format/lint
2. unit tests
3. integration/build
4. runtime/e2e (when relevant)
5. human checkpoints (merge gates)

Key behavior: failures are observations → agent loops until green.

8) Training: how to “make” a coding agent

8.1 Training stack (layered)

1. base pretraining (code + text)

2. instruction tuning (tool-use formatting, patch edits, repo tasks)

3. outcome supervision / RL:

   • reward: tests pass, task completes, fewer steps, correct tool use
   • penalty: thrashing, unsafe commands, excessive tokens/tool calls

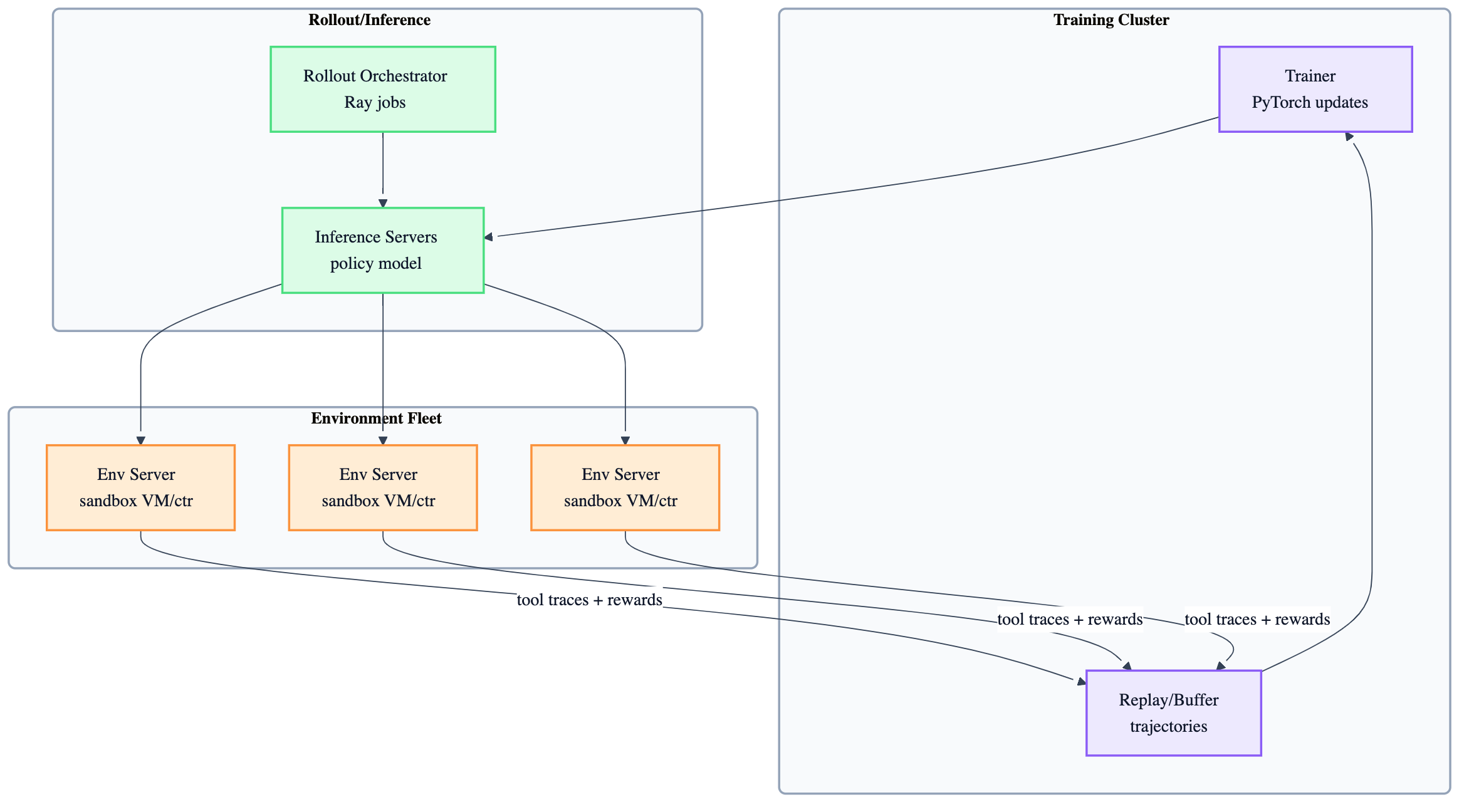

8.2 Production-parity RL infra (trainer + inference + env fleet)

Build lesson: infrastructure is part of the ML problem (async rollouts, sandbox fleets, tool reliability).

9) Evals: don’t fool yourself

9.1 What to measure (minimum set)

Task success

• completed rate
• accepted-without-human-edits rate

Correctness

• tests pass rate
• lint/typecheck pass rate

Efficiency

• time-to-first-useful-change
• tool-call count
• tokens consumed (cost proxy)

Retrieval quality

• did it open the right files?
• chunk precision / rerank effectiveness

Recovery behavior

• does it converge or thrash after failures?

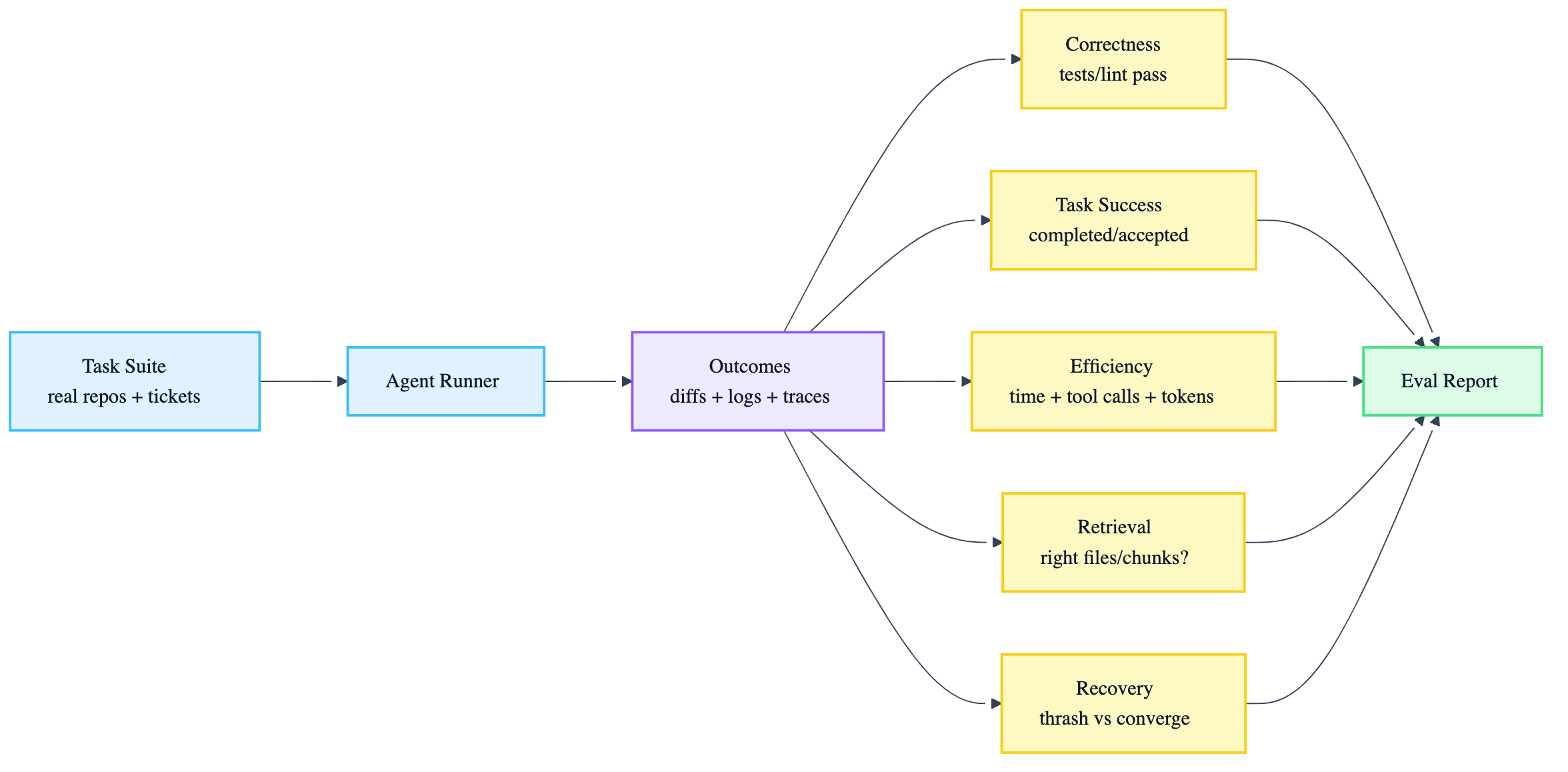

9.2 Eval pipeline diagram

10) Observability: treat agents like distributed systems

10.1 Trace model + tools + verifiers as one transaction

10.2 Trace schema (practical, debuggable)

{
  "run_id": "uuid",
  "task_type": "bugfix|refactor|feature|debug",
  "repo": {"language_mix": ["py", "ts"], "size_loc": 120000},
  "model": {"name": "X", "temperature": 0.2},
  "status": "success|fail|needs_human|budget_exhausted",
  "metrics": {
    "wall_time_ms": 182000,
    "tokens_in": 54000,
    "tokens_out": 12000,
    "tool_calls": 37,
    "patch_applies_failed": 1
  },
  "spans": [
    {
      "name": "llm_decide",
      "meta": {"tokens_in": 4500, "tokens_out": 420, "latency_ms": 820}
    },
    {
      "name": "tool_call",
      "meta": {"tool": "run", "cmd": "pytest -k auth", "exit_code": 1, "latency_ms": 24000}
    },
    {
      "name": "verify",
      "meta": {"passed": false, "failures": ["test_auth_refresh_token"], "latency_ms": 3100}
    }
  ]
}

10.3 Two dashboards you should ship early

• Reliability: tool failure rate, verifier failure rate, success rate by repo size/lang
• Efficiency: cost per success (tokens + tool calls), p95 latency, steps to converge

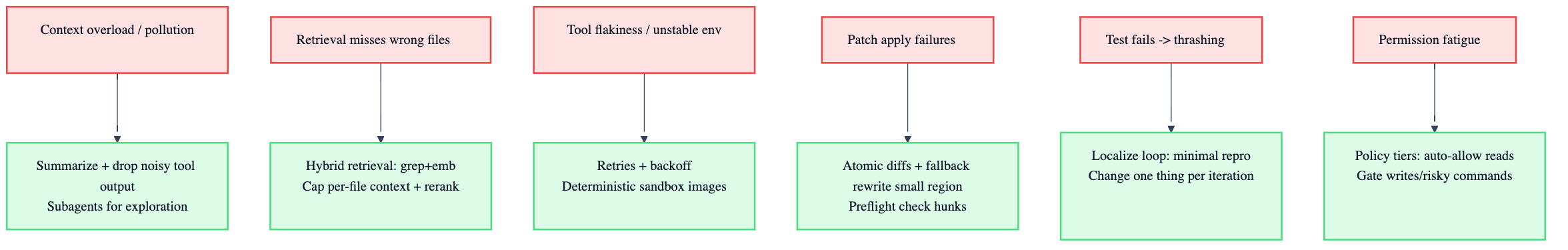

11) Failure models (how these systems break) + defenses

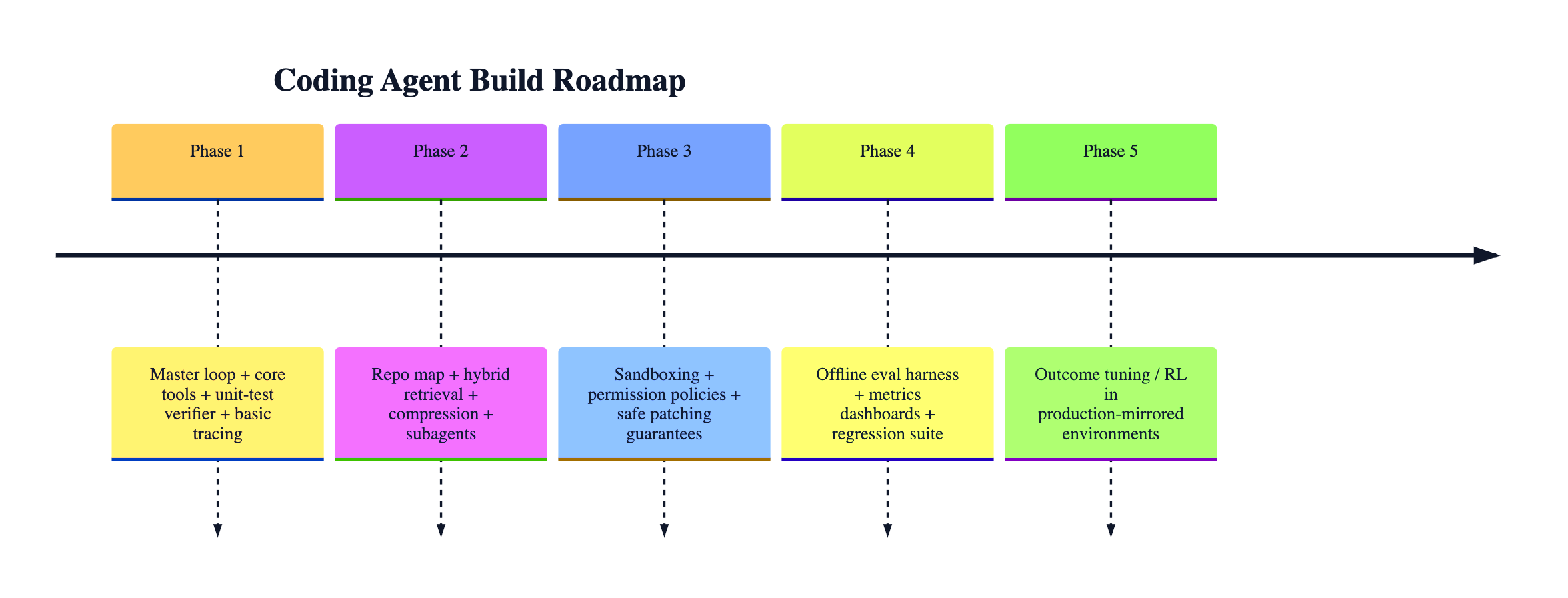

12) Build roadmap (phased delivery)

13) Quick mapping: what to copy from Claude Code vs Cursor

Copy from Claude Code-like systems

• Minimalist master loop
• Bash as universal tool + human-like tools
• Aggressive context anti-pollution (compression + subagents)
• Project instruction files + slash commands to steer behavior

Copy from Cursor-like systems

• Index freshness as a product feature (sync + incremental updates)
• IDE-native affordances (inline diffs, low-latency UX)
• Server-side orchestration with careful “least code necessary” transfer
• Parallel reads + faster inner loop

Appendix: Practical defaults (recommended)

Model settings

• temperature: low (0.0–0.3) for edits + debugging
• deterministic tool output parsing (schemas)

Safety

• auto-allow reads/grep; gate writes/run; approve risky commands
• sandbox run with locked-down filesystem/network

Context

• cap per-file tokens; prefer many small slices
• summarize stderr; keep only actionable lines
• isolate exploration via subagents

Verification

• “no green, no done” policy (tests/lint)
• rerun flaky tests with backoff and annotate uncertainty
